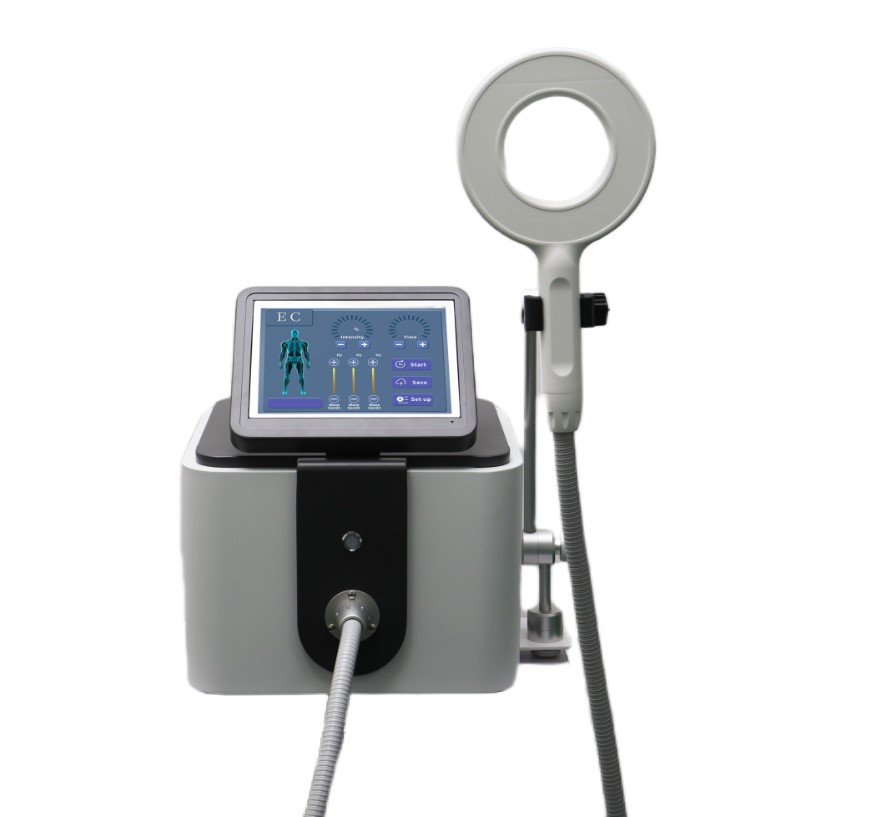

Extracorporeal Magneto Transduction Therapy EMTT Device

Magnetic Induction Intensity: 6T
Frequency: 0.01Hz ~ 100Hz
Pulse Continuous Time: ≥340μs (±20μs)
Magnetic Induction Intensity Maximum Change Rate: ≥40kT/s ~ 80kT/s
Cooling System: Air Cooling
Device Dimension: 38*38*35cm
Device Weight: 19kg

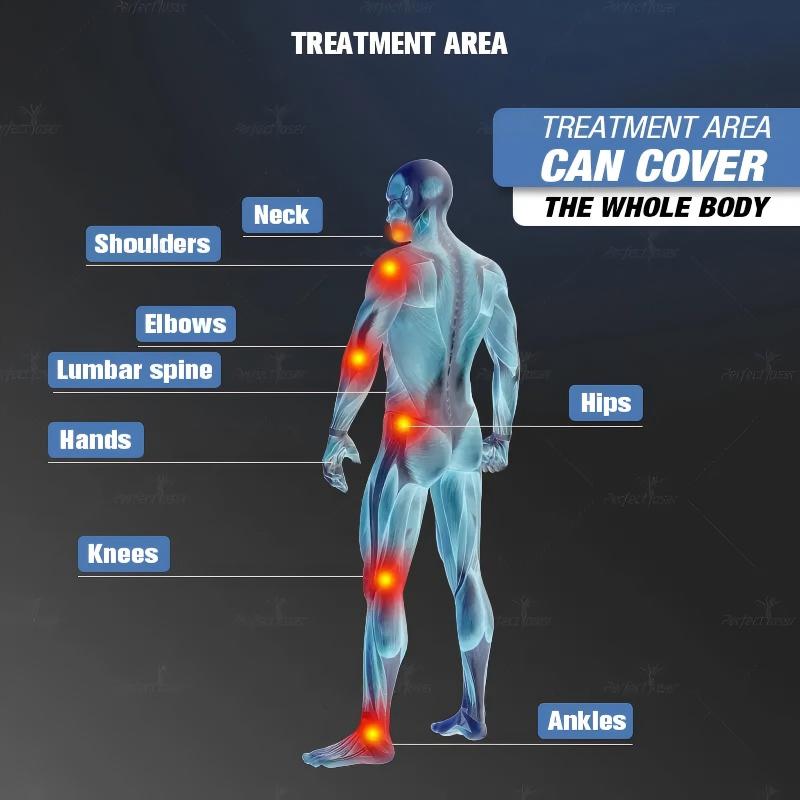

Treatment Application:
(1) Muscle pathology (contracture, muscle tears, bruises and swelling).
(2) Bone injuries, osteoarticular distractions and wear of the joints (shoulder, hips, knees, ankle joints).
(3) Pathology of the elbow, wrist and arms (epicondylitis, tendinitis, carpal tunnel syndrome).
(4) Thoracic vertebral pathology.
(5) Inflammation and damage to the Achilles tendon and ligament.
(6) Tendonitis in the shoulder joint area and chronic edema.

Device Features:
The stimulus strength can reach 6T, and the frequency can be adjusted from 0-100Hz;
Stimulate depth: 8cm under the skin, Fully stimulate nerve and deep muscle tissue;
Treatment time: 5-20minutes. Twice a week, 6-8 times as a treatment course.

Device Advantages:
Magnetic stimulation is a safe physical treatment method, with clear curative effect. Compared to
medication, its side effects are small and not easily addicted, because it is a non-systematic therapy,
it is not accompanied by the common side effects of using medicines.

(1) How does magnetic stimulation work?
According to Faraday's theorem of electromagnetic induction, a time-varying magnetic field can
induce an electric field. When an excitable tissue is in a time-varying magnetic field, an induced
electric field and an induced current are generated in the tissue. When the inductive current
exceeds the tissue's excitement threshold, it causes the cell membrane to exfoliate and excite the
tissue.

(2) Is there any radiation damage from magnetic stimulation?
No. People confuse ionizing radiation with electromagnetic radiation. X-rays, CT, etc. produce
ionizing radiation, which can cause harm to living beings; and electromagnetic radiation is
everywhere, such as mobile phones, microwave ovens, induction cookers, TVs, microphones, etc.
Magnetic stimulators generate electromagnetic radiation just like mobile TVs, so they will not
cause radiation damage. Therefore, you can accept the treatment with no worry.

(3) What is the difference between the induced current produced by magnetic stimulation
and the current produced by electrical stimulation?
The same point: all excitable tissues such as nerves and muscles are stimulated by electric current.
Differences: Electrical stimulation requires electrodes to be in contact with the skin, mucous
membranes, etc., to conduct current to the target tissue; while magnetic stimulation does not
require electrodes and does not need to be in contact with the skin or mucous membranes, it is a
time-varying magnetic field generated by a stimulation coil that induces an electric current in the
body.
